Metal Master PCB

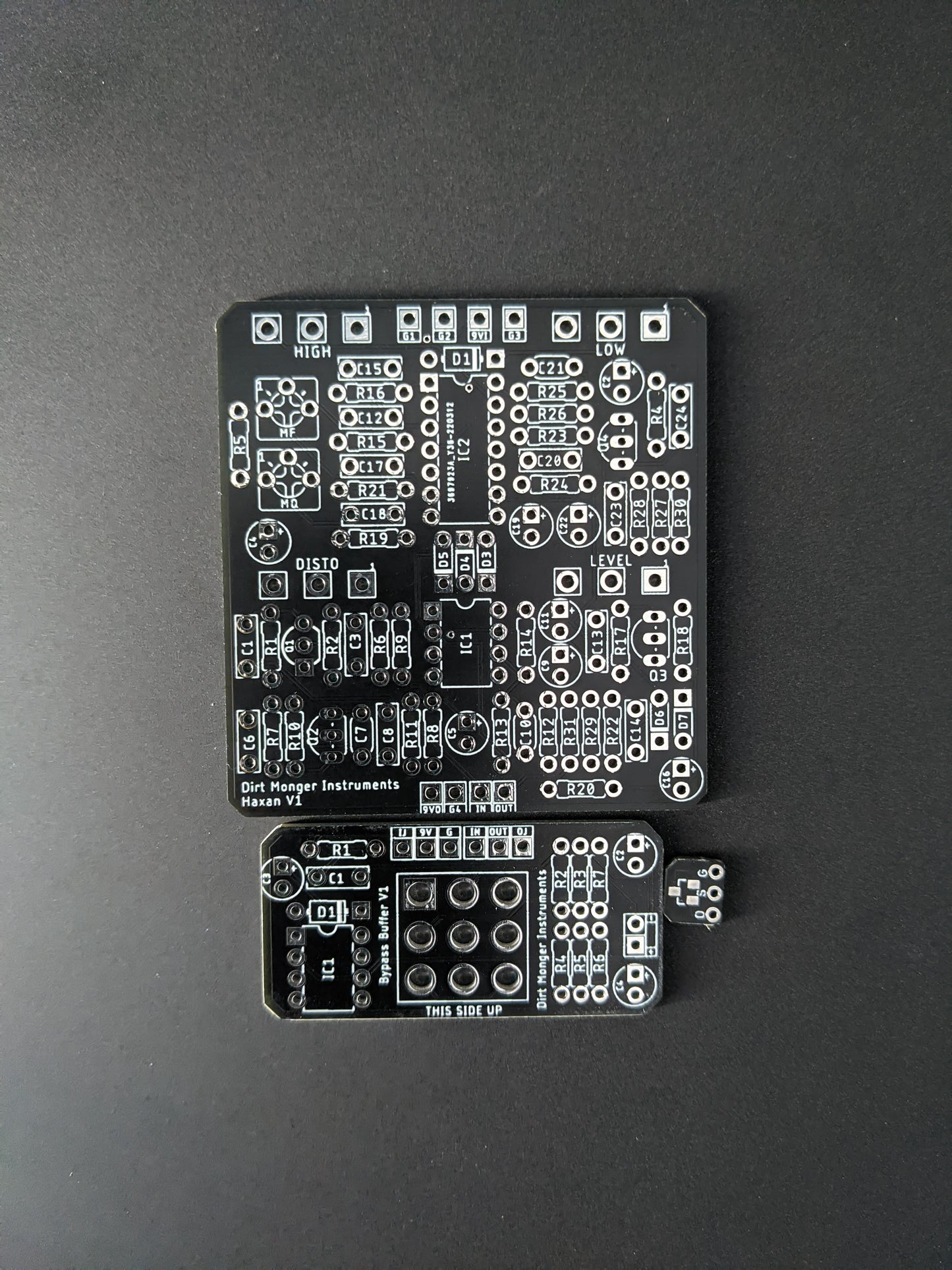

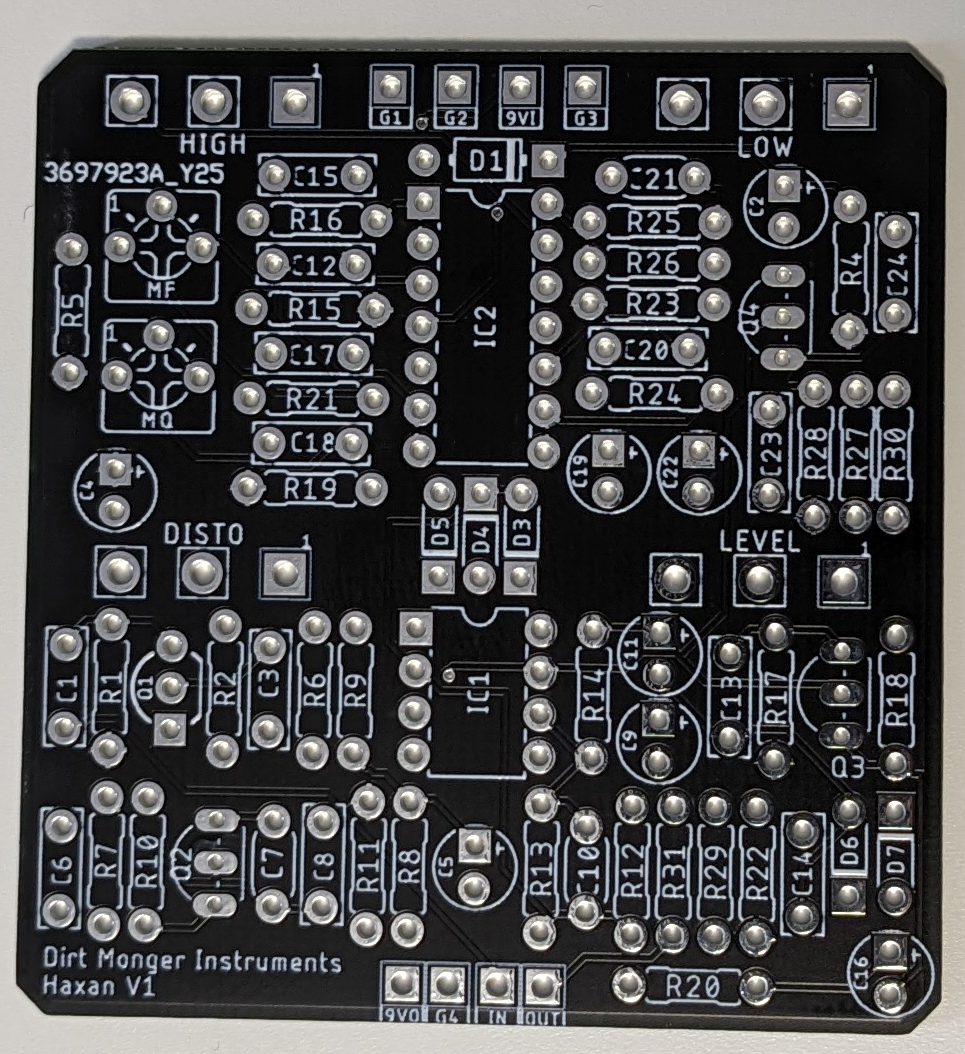

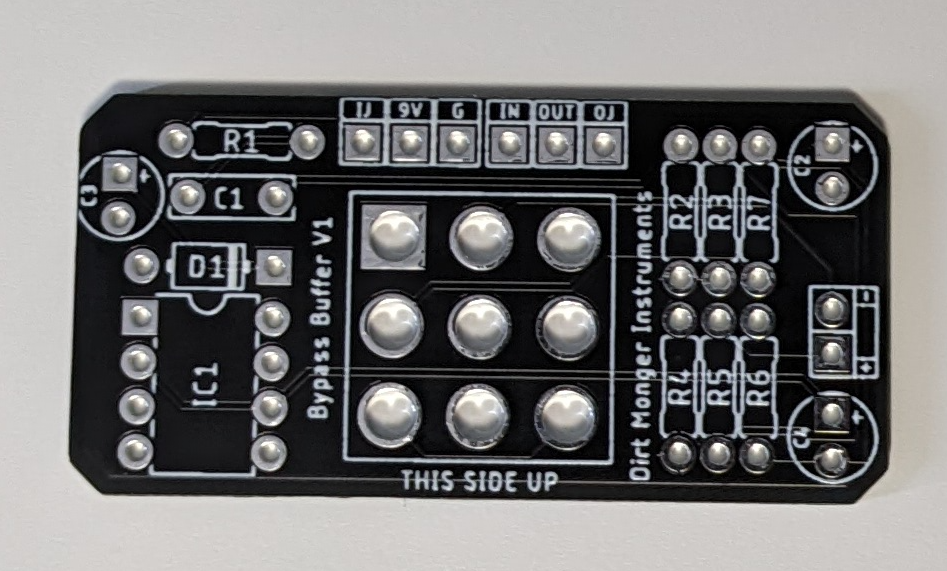

Circuit board for the Arion Metal Master DIY build. Includes Main Metal Master PCB, Buffered Bypass PCB and adapter board for SMD transistor

This project is designed to fit a 125B enclosure. Sale is for the PCB's only, all other parts not included.

PCB Dimensions - 56mm x 59mm

BUILD DOCUMENT

DRILL TEMPLATE  - 125B Enclosure

complete Metal Master pedal builds available here
