Distortion H DIY PCB

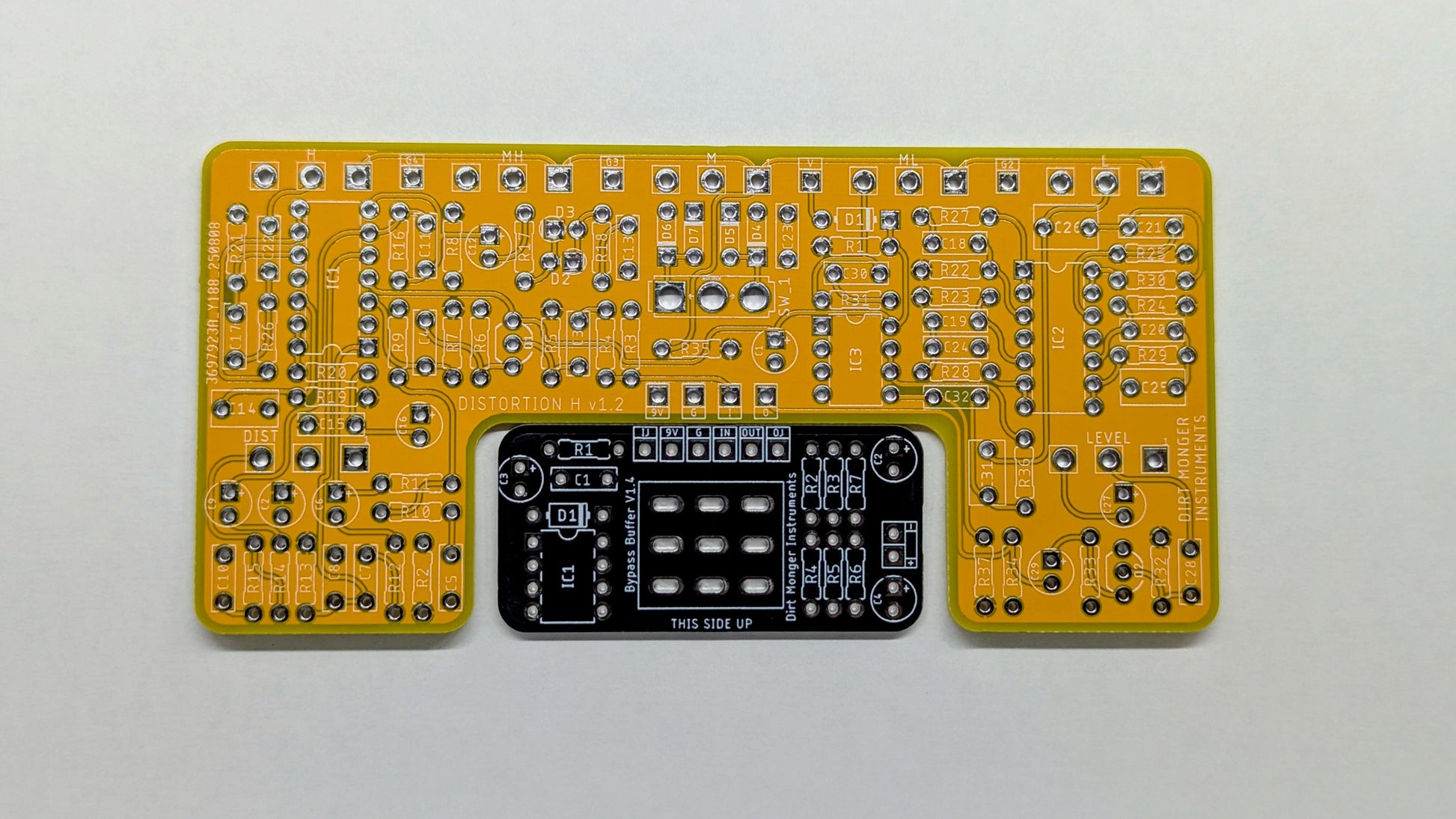

Printed Circuit Board to build a Distortion H, Includes Main PCB and Buffered Bypass PCB.

This project is designed to fit a 1590BBS/BB2 enclosure. Sale is for the PCB's only, all other parts not included.

PCB Dimensions - 112mm x 54mm

BUILD DOCUMENT

Complete Distortion H pedals available here
