DOD Death Metal Clone DIY PCB

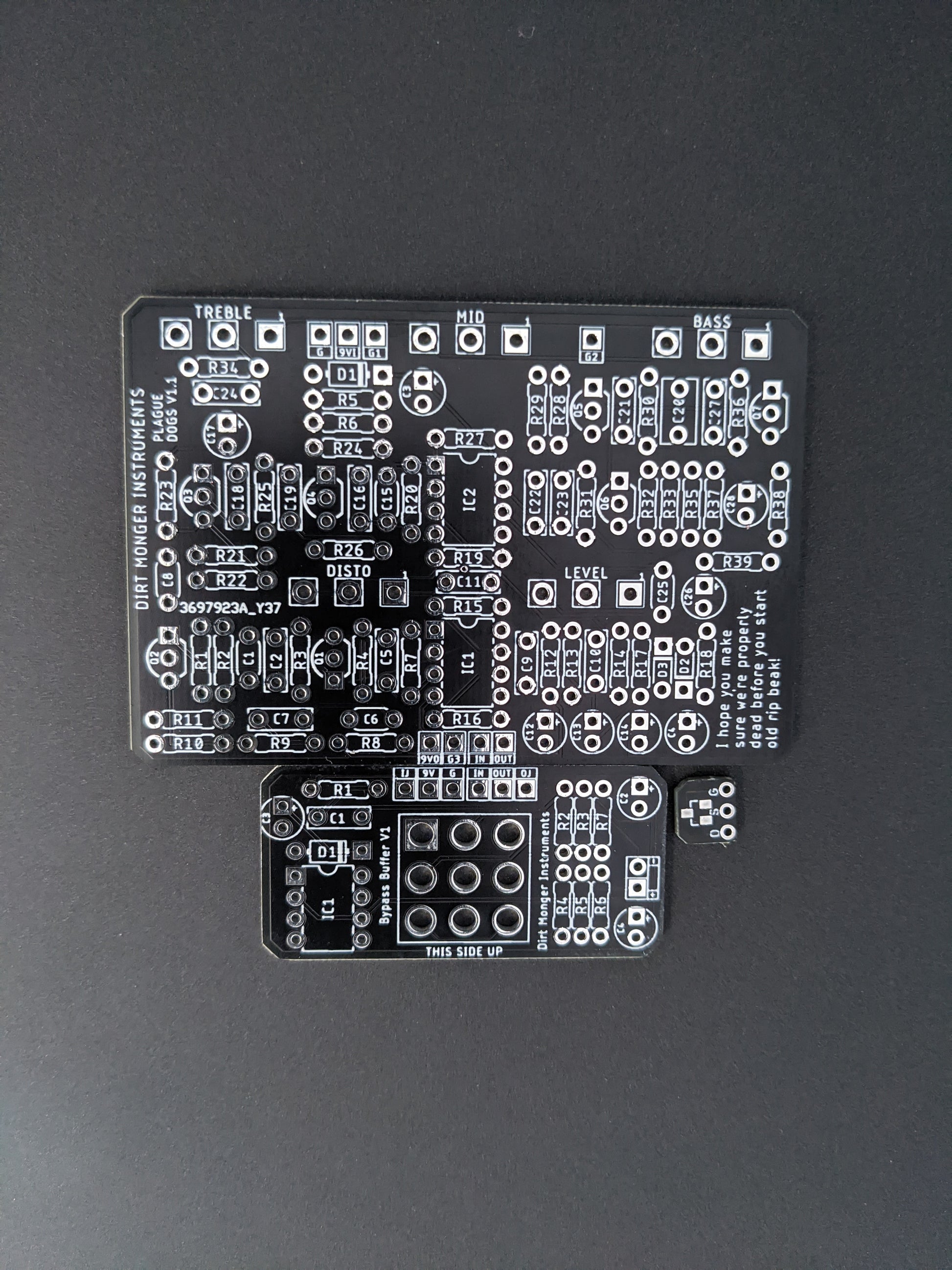

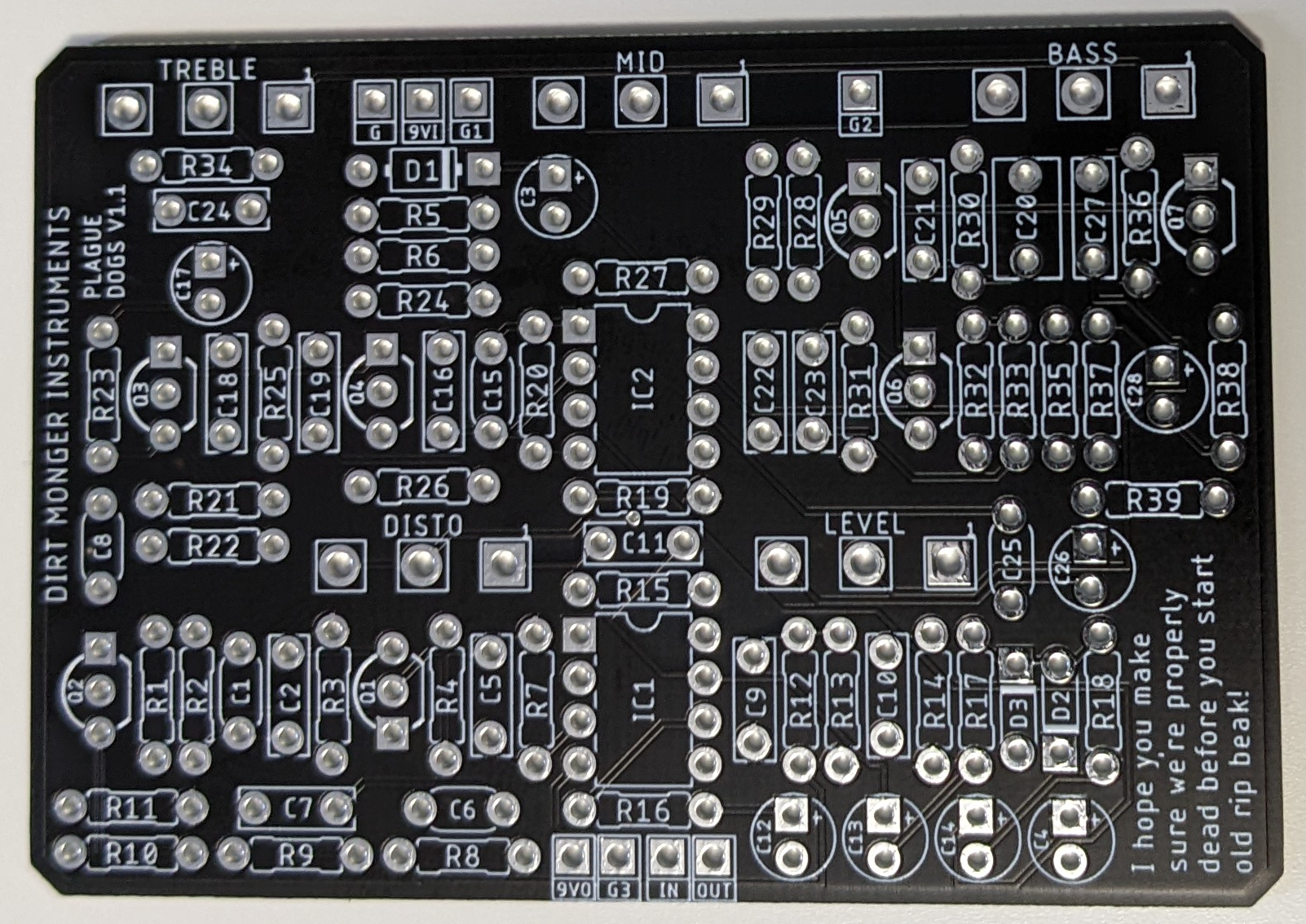

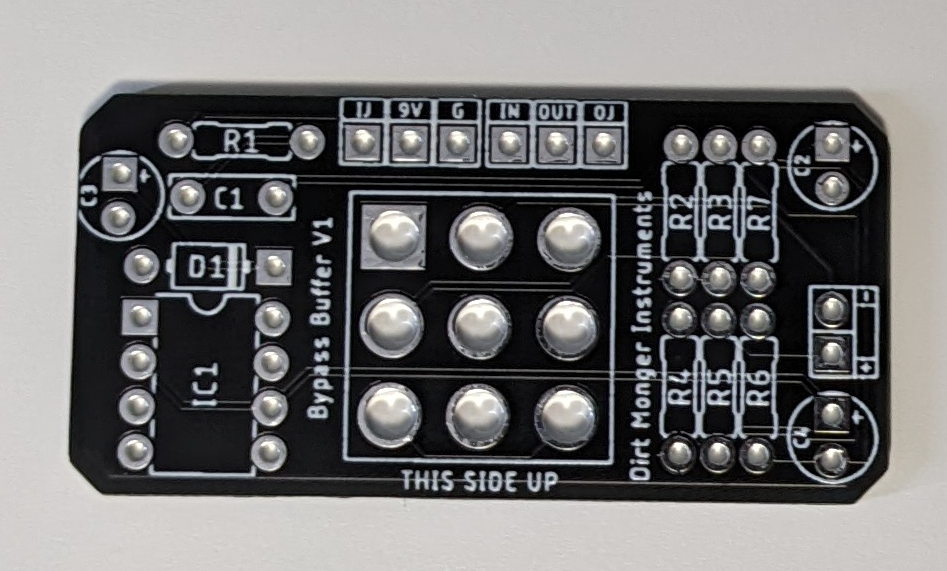

Circuit board for the DOD Death Metal DIY build. Includes Main Death Metal PCB, Buffered Bypass PCB and adapter board for SMD transistor

This project is designed to fit a 1590BBS/BB2 enclosure. Sale is for the PCB's only, all other parts not included.

PCB Dimensions - 76mm x 52mm

BUILD DOCUMENT

DRILL TEMPLATE - 1590BB2 or BBS

Complete Death Metal pedal builds available here
