Metal X/Corrosion and Grunge DIY PCB

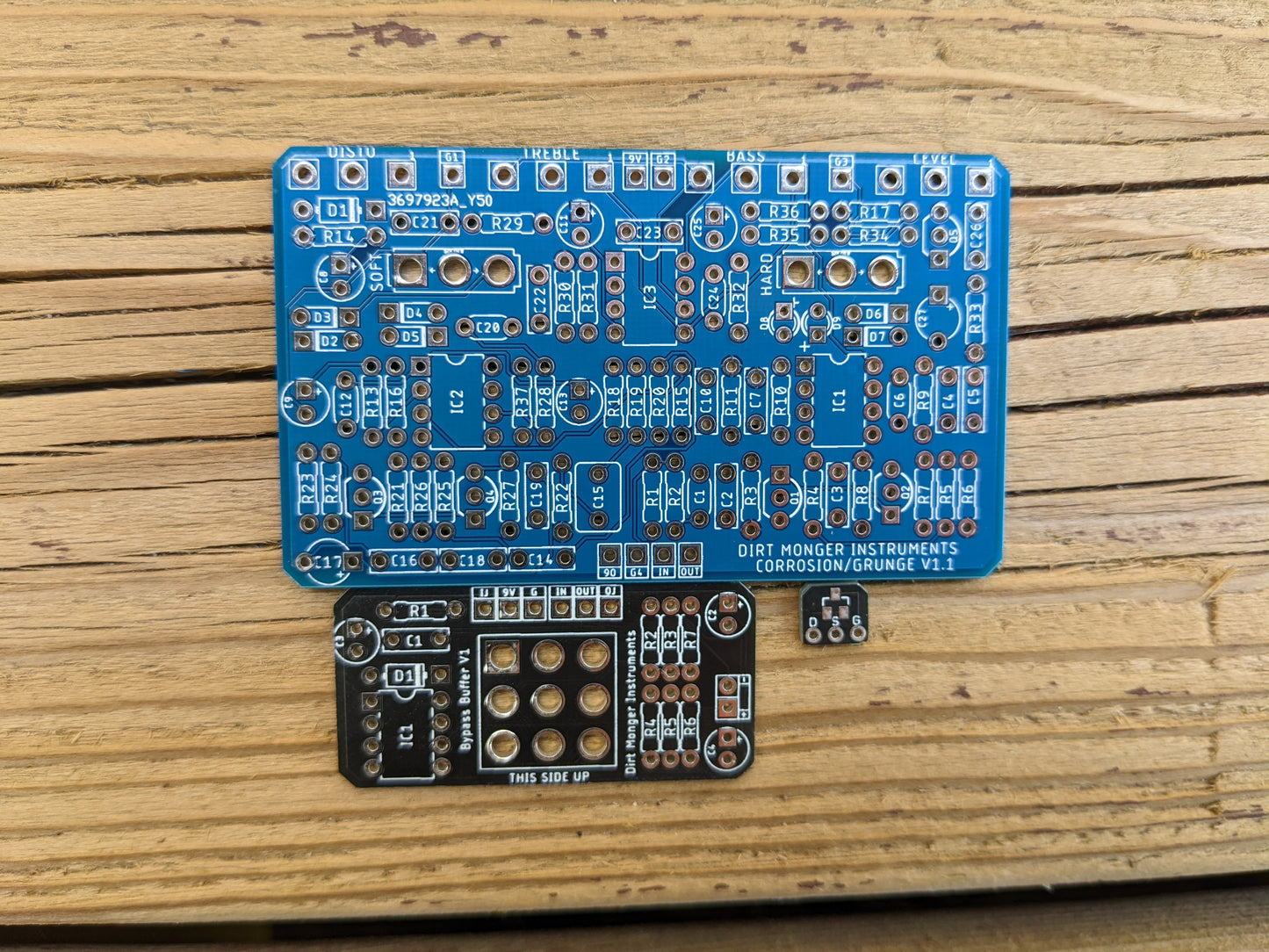

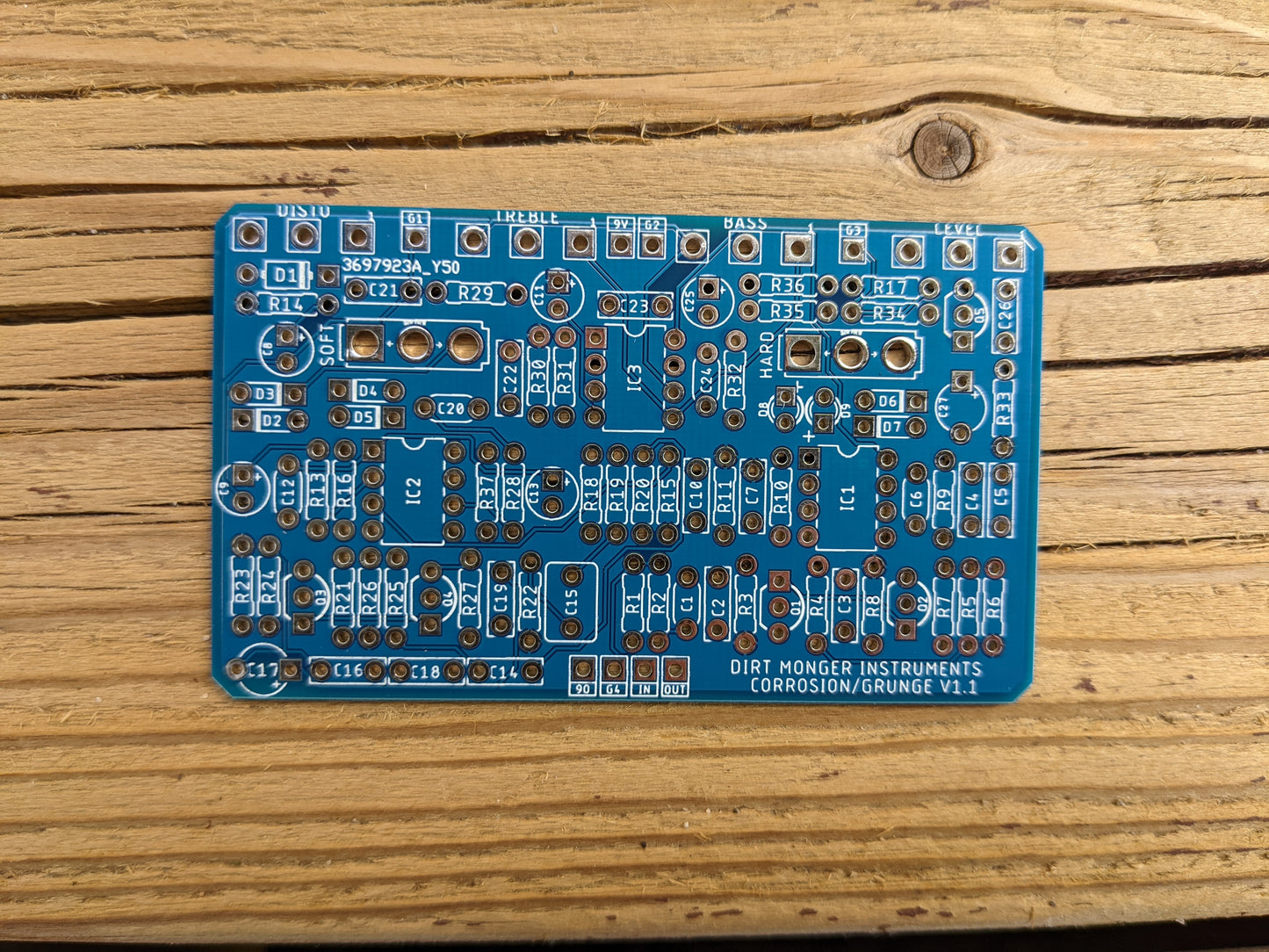

Printed Circuit Board to build either a DOD Metal X, Corrosion or Grunge depending on your taste in dirt. Includes Main PCB, Buffered Bypass PCB and adapter board for SMD transistor.

This project is designed to fit a 1590BBS/BB2 enclosure. Sale is for the PCB's only, all other parts not included.

PCB Dimensions - 80mm x 47mm

BUILD DOCUMENT
