Integrated Preamp PCB
Dirt Monger Instruments

Integrated Preamp PCB

Regular price $10.00 $0.00 Unit price per
Shipping calculated at checkout.

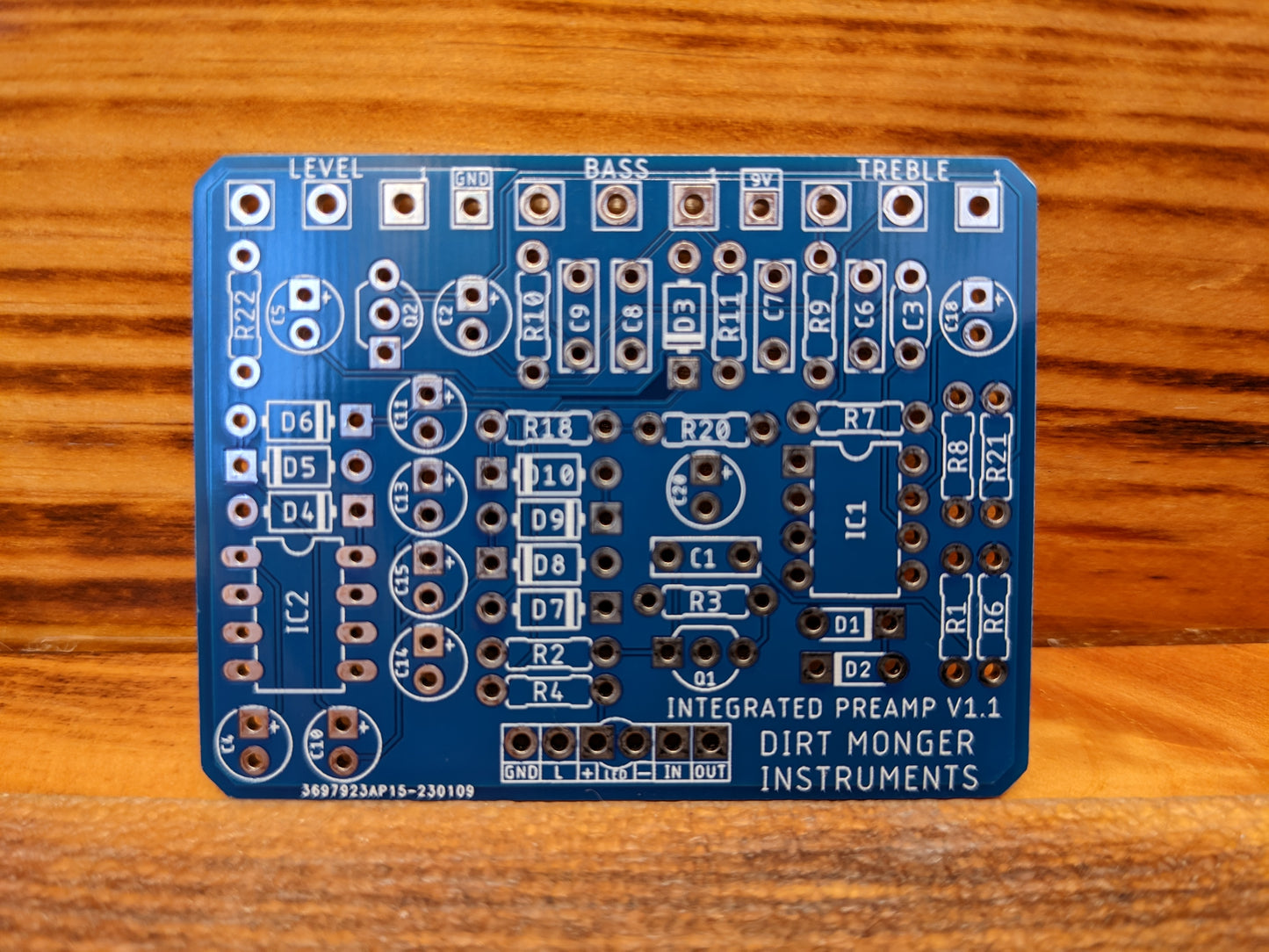

DIY PCB for the Undead Preamp which is a clone of the Integrated Preamp with a 32 volt charge pump for added headroom.

This project is designed to fit a 125B Enclosure. Sale is for the PCB only, parts need to be purchased from another source.

PCB Dimensions - 56mm x 43mm



BUILD DOCUMENT

DRILL TEMPLATE

TAYDA DRILL TEMPLATE

Complete Integrated Preamp pedals available here
